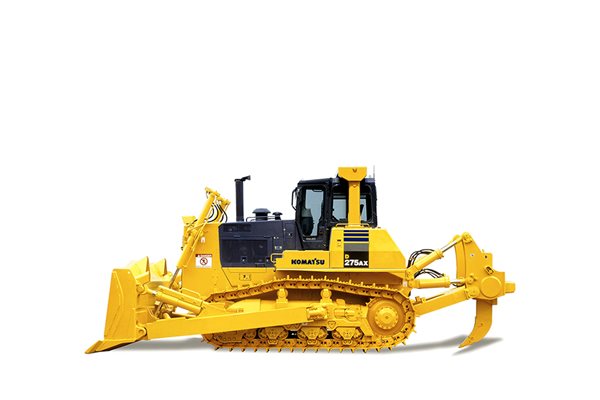

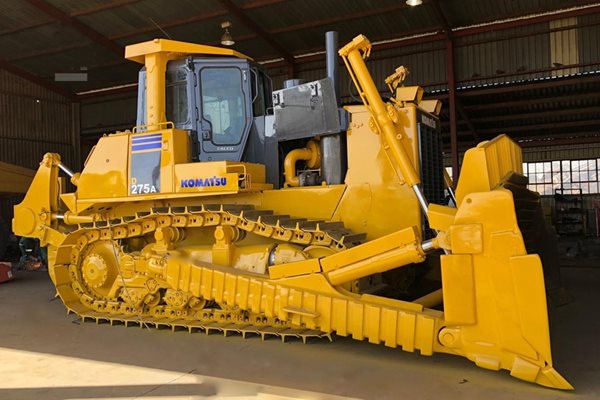

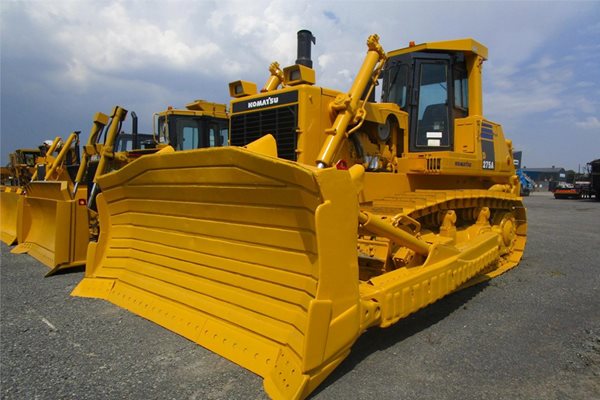

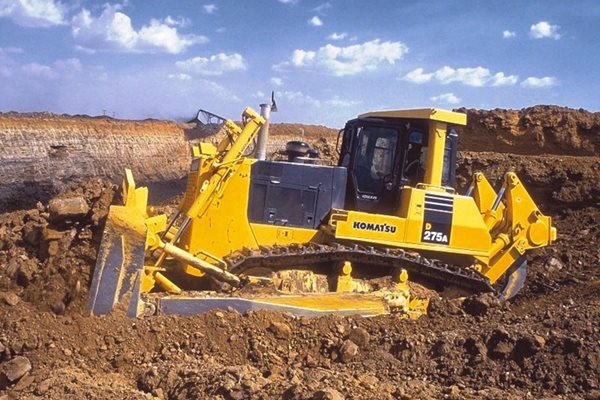

D275A-5R
Operating Performance
Operating Weight
50850 kg
Blade Width
4300 mm
Blade Height
1960 mm
Blade - Lift Clearance
1450 mm
Blade - Dig Depth
640 mm
Max Tilt Adjustment
1140 mm
Undercarriage
Number of Track Rollers (each side)
7
Shoe Type
Single Grouser
Standard Shoe Width
610 mm
Shoes Number
39
Ground Contact Area
42,456 cm2
Ground Pressure
87.3 kPa
Travel Speed - Forward
11.2 kmh
Travel Speed - Reverse
14.9 kmh
Engine
Emission Rating
Tier 3 Final
Make / Model
Komatsu SAA6D140E-5
Piston Displacement
15.24 L
Gross Horsepower
337 kW @2,000 rpm
Net Horsepower
335 kW @2,000 rpm
Fluid Capacities
Engine Lubrication
52 L
Cooling System
100 L
Fuel Tank Capacity
840 L
